Conscious that the systems provided are strategic for the customer and for his production’s targets, Telea Tecnovision dedicates continuously resources to develop and realize more and more reliable solutions that prove to be of easy maintenance.
The attention is also addressed to provide an elevated degree of interface with the processing automation, giving the possibility of an interconnection with PLC and DCS, in order to increase the integration level among the systems. The application areas are wide and concern mainly the inside supervision for re-heating furnaces, rolling mills, EBT, LF, VOD and continuous casting process.
CAMTEC | High temperature industrial cameras

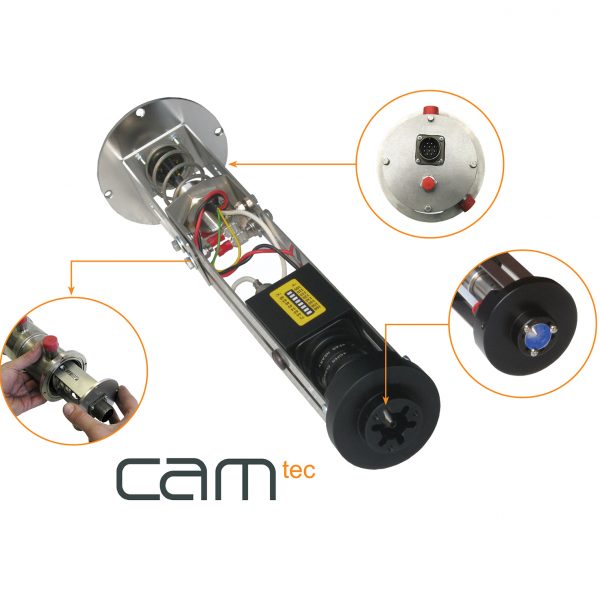

CAMTEC high temperature cameras provide clear, crisp images of the EBT, LF, VOD, continuos casting machine and Re-heating furnace. With the real-time image provided, engineers and operators can monitor the proper flow of steel with safety and reliability.
CAMTEC cameras offering industry leading 690 HTVL-Effective Resolution, Low Light and WDR performance combined with Motion Adaptive 3D Digital Noise Reduction, will produce high quality video even in the most challenging lighting conditions present in the high temperature Industrial process.
SONDATEC | High temperature cooled housings

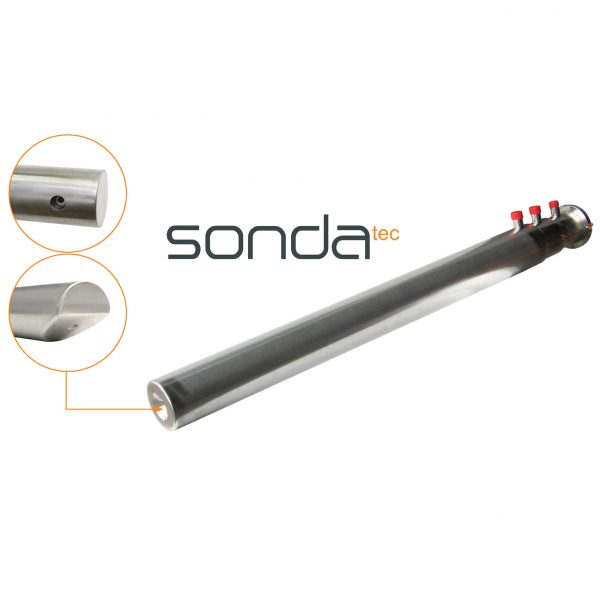

SONDATEC housing series have been developed to allow the use of television camera in high temperature environments, as glass process, cement industry, iron&steel plant and boiler. These high-temperature camera systems provide clear, crisp images of the combustion process in boilers, furnaces, kilns, incinerators and other combustion chambers. With the real-time image provided, operators and engineers can monitor the proper flow of fuel and raw materials, reduce emissions, reduce fuel consumption, speed up boiler light off, and improve safety.
SONDATEC housings are available in different lengths from 300 mm up to 4000 mm, with diameter 89 mm available for the new release 2.0.They are typically endowed with axial vision and they can allow diagonal angles of vision up to 105°.
Depending on the behavior of the chemicals involved in the process, SONDATEC camera housing should be made by special stainless steels, high-resistance alloys or by using superficial protections.
SONDATEC camera housings employ triple-wall laminar flow for efficient water cooling of the camera and allow operation in temperatures up to 2200°C (≈4000°F). Otherwise a special air cooled system allows operation in temperatures up to 700°C (≈1300°F).
SONDATEC housings are “pressurized”: an integral compressed air system supplies clean air (or appropriate gas) for cooling and particulate removal from the lens. In such a way the lens doesn’t require any expensive protection glass, crystal and protection porthole. A constant supply of clean air is essential for proper camera operation and protection: GFATEC series represent an effective filtration system able to remove contaminants and to provide high quality clean air in industrial environments.
SONDATEC housing is designed to be mounted either directly through the wall of a furnace or by using OUTEC series, a wall fixing medium endowed with a protective shutter type “porthole” that increases safety and easy maintenance.
If it is requested a penetration inside the furnace, SONDATEC housing may be provided with retraction devices, INTEC series: in case of system failure, or failure of the cooling supply, the retraction device automatically removes the housing from the furnace and seals the furnace porthole.
OUTEC | Protection devices

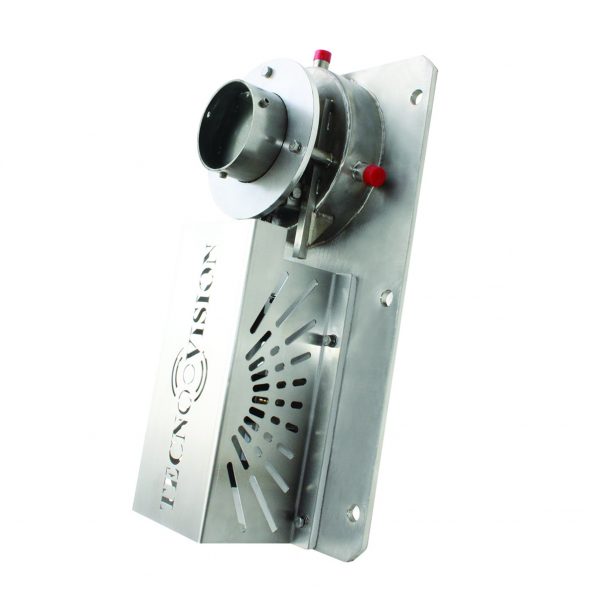

OUTEC series device is a wall fixing medium that increased safety and easy maintenance of the high temperature monitoring systems, SONDATEC series. It can be used where internal furnace temperature is up to 1600°C (≈3000°F) and wall temperature up to 200°C (≈400°F).
The equipment is made by AISI304 stainless steel and it is endowed with a water cooling system, with a protective shutter controlled by a pneumatic cylinder and with a compressed air system.
The necessary cooling media supply and power supply are performed by control cabinet CABTEC series. In case of power failure, water or air shortage or temperature exciding the standard requirements, the shutter is automatically sealed with a pneumatic cylinder in order to protect the camera housing and to reduce any thermal or pressure losses.
Moreover the unit is fitted with an integral compressed air system that creates an “air barrier” to protect the camera from overpressure or flame exit through the furnace orifice. In such a way the camera doesn’t require any expensive protection glass, crystal and protection porthole. A constant supply of clean air is essential for proper camera operation and protection: GFATEC series represent an effective filtration system able to remove contaminants and to provide high quality clean air in industrial environments.
During planning and projecting phase our engineers will support the customers in order to find the optimized position where to install the surveillance system and to suggest the best available solution according to customer’s requirements.
CABTEC | Control cabinets

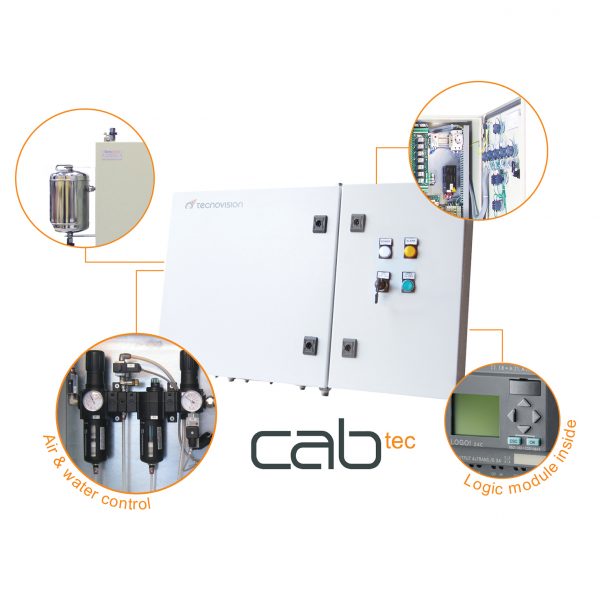

The control cabinets of the CABTEC series are designed for the management and control of all TECNOVISION high temperature camera systems. The units provide the correct voltages to the cameras and ancillary systems, irrespective of the available local supply voltage (230Vac, 115Vac, 48Vac, 24Vac, 50 or 60 Hz).
The units include all the safety and warning features required for the correct management of the system. Various type of internal instrumentation like pressure cages, flow meters and thermostats (analogue or digital as required) provide full control of all system’s operations and conditions.
All cabinets and associated system’s conduits are available in differing materials to suit the local environment.
